Leading Solid Polycarbonate Sheet Manufacturer In China
Solid polycarbonate sheet offers high light transmission, excellent impact resistance, and extraordinary durability. It is virtually unbreakable as 250-300 times stronger than glass, 20-30 times stronger than plexiglass sheets, and 25 times stronger than tempered glass. Therefore, it is widely known as polycarbonate glazing sheet, polycarbonate sheet, polycarbonate panel, unbreakable plastic sheet, etc.
Solid Polycarbonate Specification
| Thickness (mm) | Width (mm) | Length (m) |
|---|---|---|
| 0.8mm, 1mm, 1.5mm | 1220mm, 2100mm, 2650mm | 1220mm, 2440mm, 5800mm, 11800mm, 30m (roll), 40m (roll), 50m (roll) |
| 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm | 1220mm, 2100mm, 2650mm | 1220mm, 2440mm, 5800mm, 11800mm |
| 8mm, 10mm, 12mm, 15mm | 1000mm, 1220mm, 2100mm, 2650mm | 1220mm, 2440mm, 5800mm, 11800mm |
| 16mm, 18mm, 20mm | 1000mm, 1220mm, 2100mm | 1220mm, 2440mm, 5800mm |
| 25mm, 30mm, 35mm, 40mm | 610mm, 1050mm, 1220mm | 1220mm, 2440mm |
| 45mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm, 200mm, 300mm, 400mm, 500mm | 610mm, 1050mm, 1220mm | 1220mm, 2440mm |
| Type | Colors description |
|---|---|
| Transparent | Clear, Bronze, Red, Blue, Green, Solar Grey, Lighter Blue, Lighter Green |
| Translucent | White Opal, White Diffuser, Yellow, Red, Mint Green |
| Opaque | Black, Yellow, Dark Blue, Cream, Dark Grey, Dark Brown |
| Property | Test Method | Testing Condition | Unit | Value |
|---|---|---|---|---|
| Density | D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | D-648 | Load: 1.82 MP | °C | 135 |
| Short Time Service Temperature | °C | from -50 to +130 | ||
| Long Time Service Temperature | °C | from -40 to +100 | ||
| Coefficient of Linear Thermal Expansion | D-696 | mm/m °C | 0.065 | |
| Thermal Conductivity | C-177 | W/m K | 0.21 | |
| Tensile Strength at Yield | D-638 | 10 mm/min | Mpa or N/mm² | >65 |
| Tensile Strength at Break | D-638 | 10 mm/min | MPa or N/mm² | >60 |
| Elongation at Yield | D-638 | 10 mm/min. | % | 6 |
| Elongation at Break | D-638 | % | >95 | |
| Tensile Modulus of Elasticity | D-638 | 1 mm/min | MPa | 2350 |
| Flexural Strength | D-790 | 1.3 mm/min. | MPa | 100 |
| Flexural Modulus | D-790 | 1.3 mm/min. | MPa | 2600 |
| Impact Falling Weight | ISO 6603/1 E50 | 3mm sheet | J | 158 |
| Light Transmission | D-1003 | % | 82 – 92 | |
| Haze | D-1003 | % | <0.5 | |
| Flammability Rate | UL 94 | V-2 |
Main Benefits Solid Polycarbonate Sheets

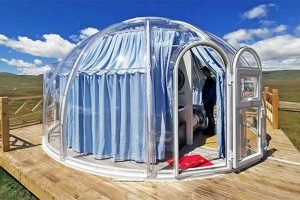

Typical Applications
Related Products
Frequently Asked Questions
Our main products are PVC roof sheets, Polycarbonate Sheets, FRP sheets, etc.
Of course, we can send you our samples for free. We only need your courier Number.
The thickness of PVC roof tiles may vary, but common thickness ranges are between 2.0mm and 3.0mm. The specific thickness depends on the design and usage requirements of the product.
PVC roof tiles are usually available in a variety of colors, such as white, blue, green, red, brick red, gray, yellow, etc., to suit different architectural styles and aesthetic needs.
We have our own design department and provide design services to thousands of partners.
we are factory
Yes, although PVC roof tiles have a long service life and good durability, they still need regular maintenance and care. This includes clearing debris from the roof and checking whether the tiles are damaged or loose.
When cleaning PVC roof tiles, avoid using sharp or hard tools to scratch the surface to avoid damaging the tiles. You can use a soft brush or a high-pressure water gun for cleaning, but be careful not to use too much water pressure to avoid damaging the tiles or affecting their waterproof performance.
