Leading Manufacturer of Polycarbonate Roofing System in China

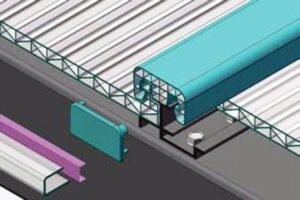

Polycarbonate Roofing Panel is one of the integrated roofing systems with “lock catch structure”, which is safe, durability, excellent impact resistance, and easy to install, it is also called “polycarbonate roofing sheets”, which is the best roofing solution for a commercial building, industrial building, stadium, airport, railway station, skylight, greenhouse, walkway, carport, etc.
Polycarbonate Roofing Panels Specification
| Item | Colors Description |
|---|---|
| Normal Colors | Clear, Bronze, Opal White, Green, Blue |
| Double Colors on Both Surfaces | Bronze/Opal White, Solar Control/Opal White |
| Solar Control Colors | Reflective grey, reflective blue, Solar Ice, Pearl, Absorbed Green, Absorbed Blue |
| Bright Surface | Clear, Bronze, Opal White, Green, Blue |
| Item | Test Method | Testing Condition | Unit | Value |
|---|---|---|---|---|
| Density | D-792 | g/cm3 | 1.2 | |
| Short Term Service Temperature | °C | from -50 to +130 | ||
| Long Term Service Temperature | °C | from -40 to +100 | ||
| Coefficient of Linear Thermal Expansion | D-696 | mm/m °C | 0.065 | |
| Thermal Conductivity | C-177 | W/m K | 0.21 | |
| Tensile Strength at Yield | D-638 | 10 mm/min | Mpa or N/mm² | >65 |
| Tensile Strength at Break | D-638 | 10 mm/min | MPa or N/mm² | >60 |
| Elongation at Yield | D-638 | 10 mm/min. | % | 6 |
| Elongation at Break | D-638 | % | >95 | |
| Tensile Modulus of Elasticity | D-638 | 1 mm/min | MPa | 2350 |
| Flexural Strength | D-790 | 1.3 mm/min. | MPa | 100 |
| Flexural Modulus | D-790 | 1.3 mm/min. | MPa | 2600 |
Main Benefits
Related Products
Frequently Asked Questions
Our main products are PVC roof sheets, Polycarbonate Sheets, FRP sheets, etc.
Of course, we can send you our samples for free. We only need your courier Number.
The thickness of PVC roof tiles may vary, but common thickness ranges are between 2.0mm and 3.0mm. The specific thickness depends on the design and usage requirements of the product.
PVC roof tiles are usually available in a variety of colors, such as white, blue, green, red, brick red, gray, yellow, etc., to suit different architectural styles and aesthetic needs.
We have our own design department and provide design services to thousands of partners.
we are factory
Yes, although PVC roof tiles have a long service life and good durability, they still need regular maintenance and care. This includes clearing debris from the roof and checking whether the tiles are damaged or loose.
When cleaning PVC roof tiles, avoid using sharp or hard tools to scratch the surface to avoid damaging the tiles. You can use a soft brush or a high-pressure water gun for cleaning, but be careful not to use too much water pressure to avoid damaging the tiles or affecting their waterproof performance.
